Fabrication & Industrial Engineering Works

We offer a wide range of high-performance industrial filtration solutions designed to meet the needs of various industries. Our products are engineered for durability, efficiency, and reliable performance in demanding environments.

Liquid Filter Bags

Sizes: 4″x10″, 4″x20″, 7″x16″, 7″x32″, Customized
Media: Woven & Non-Woven
Micron Rating: 1, 5, 10, 25, 50, 100, 250, 500
Configuration: 100% Welded / 100% Stitched
Material: Polypropylene, Polyester, Nylon, Cotton
Collar: PP, SS Ring, Collar

High Temperature Boiler Filter Bag

Coating: SGT, PTFE, Acid Resistant
Micron: 1 – 10
Media: Glass Fiber (Woven / Non-Woven)
Temperature: Up to 350°C
Size: Customized

Pleated Dust Filter Cartridge

Size : Standard & Customized
Configuration : Lugs Type, Collar Type, Flange Type, Tie Rod Fitting, Snap Band Fitting
Micron Rating : 1, 5, 10, 25, 50
Types Of Filter Media : Polyester, Polypropylene, Nomex, Ryton, Homopolymer Acrylic
MOC Of Filter Media : PP, Spun Bonded Polyester, Cellulose Paper, Nomex

Dust Collection Filter Bag

Size : Customized
Coating : Calender, OWR, Antistatic
Micron Rating : 1 to 200
Types Of Filter Media : Polyester, Polypropylene, Nomex, Ryton, Homopolymer Acrylic
Configuration : Snap Band, Collar Type, Ring Type
Filter Media Type : Woven & Non-Woven
Temperature : Ambient to 350˚C
MOC Of Filter Media : PP, Polyester, Acrylic, Ryton, Nomex
Surface Coating : Coated Polyester, Acrylic, Ryton, Nomex

HEPA FILTER

Size : As per your design, Customized
Types Of Filter Media : Imported Glass Fiber (Foil Separator & Mini Pleat)
Frame : SS 304, GI, Aluminum
Micron Rating : 0.3
Types : Flanged Type, Box Type
Configuration : Adhesive

POCKET FILTER

Size : As per your design, Customized
Frame : SS 304, GI, Aluminum
Micron Rating : 1, 3, 5, 10
Types Of Filter Media : G4, M5, F5, F7, F9 (PP & PE)
Types : Flanged Type, Box Type, Pocket Type
Configuration : Adhesive

PANEL FILTERS

Size : As per your design, Customized
Frame : SS 304, GI, Aluminum
Micron Rating : 1, 5, 10, 25, 50, 100, 250, 500
Types Of Filter Media : Wire Mesh, Non-Woven (N/W), HDPE, Glass Fiber, Paper
Types : Flanged Type, Box Type, Pocket Type
Configuration : Adhesive

PRE FILTER / POLYESTER HILOFT MEDIA

Size : 1.5 Meter Width
Thickness : 10 mm, 20 mm, 50 mm, 100 mm
Coating : SGT, PTFE, Acid Resistance
Micron Rating : 100 GSM to 600 GSM
Types Of Filter Media : Hiloft Polyester Media

PAPER FILTERS

Size : 1 MTR × 10 MTR
Types Of Filter Media : Paper Pleated

CEILING FILTERS

Size : 1.6, 2.1, 2.4 Meter Width
Thickness : 25 mm
Micron Rating : 600 GSM
Types Of Filter Media : Ceiling Filter Media

GLASS FIBER HILOFT MEDIA

Size : 0.8, 1, 2 Meter Width
Thickness : 4″ (100 mm) / 2.3″ (60 mm)
Types Of Filter Media : Glass Fiber

FILTER MEDIA (WOVEN & NON-WOVEN)

Size : Customized
Micron Rating : 1, 3, 5, 10, 20, 30, 50, 100
Configuration : Non-woven filter paper media
Types Of Filter Media :Popypropylene, Polyester , Cotton, Glass Fibre, Aramide, Nylon HDPE

DEEP PLEAT SF

Size : Al/SS 304/GI
Types Of Filter Media : Micro Glass Fiber Media
Final Pressure Drop : 600 Pa
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room

DEEP PLEAT HF

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI
Types Of Filter Media : Micro Glass Fiber Media
Final Pressure Drop : 600 Pa
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room

DEEP PLEAT SU F

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI
Types Of Filter Media : Micro Glass Fiber Media
Final Pressure Drop : 600 Pa
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room

MDF DEEP PLEAT

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI / MDF
Types Of Filter Media : Micro Glass Fiber Media
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Temperature : 70°C
Final Pressure Drop : 600 Pa

MINI PLEAT

Size : As per your design, Customized
Frame : MDF
Types Of Filter Media : Micro Glass Fiber Media
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Temperature : 70°C
Final Pressure Drop : 600 Pa

MDF MINI PLEAT

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI / MDF
Types Of Filter Media : Micro Glass Fiber Media
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Temperature : 70°C
Final Pressure Drop : 600 Pa

GEL SEAL HEPA

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI
Types Of Filter Media : ePTFE
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Final Pressure Drop : 600 Pa

EPTFE FILTER

Size : As per your design, Customized
Frame : Aluminum / SS 304 / GI
Types Of Filter Media : ePTFE
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Final Pressure Drop : 600 Pa

V-BANK FILTER

Size : As per your design, Customized
Frame : HIPS
Types Of Filter Media : Micro Glass Fiber Media
Temperature : 70°C
Application : HVAC, AHU, Commercial Buildings, Hospitals, Pharma & Clean Room
Final Pressure Drop : 650 Pa

V-HV FILTER

Size : As per your design, Customized
Frame : Aluminum
Types Of Filter Media : Micro Glass Fibre
Temperature : 70°C
Final Pressure Drop : 650 Pa
Application : Hospitals, Food Processing, Educational Institutes, Pharmaceutical Manufacturing, Cleanrooms, Gas Turbine Intake Systems

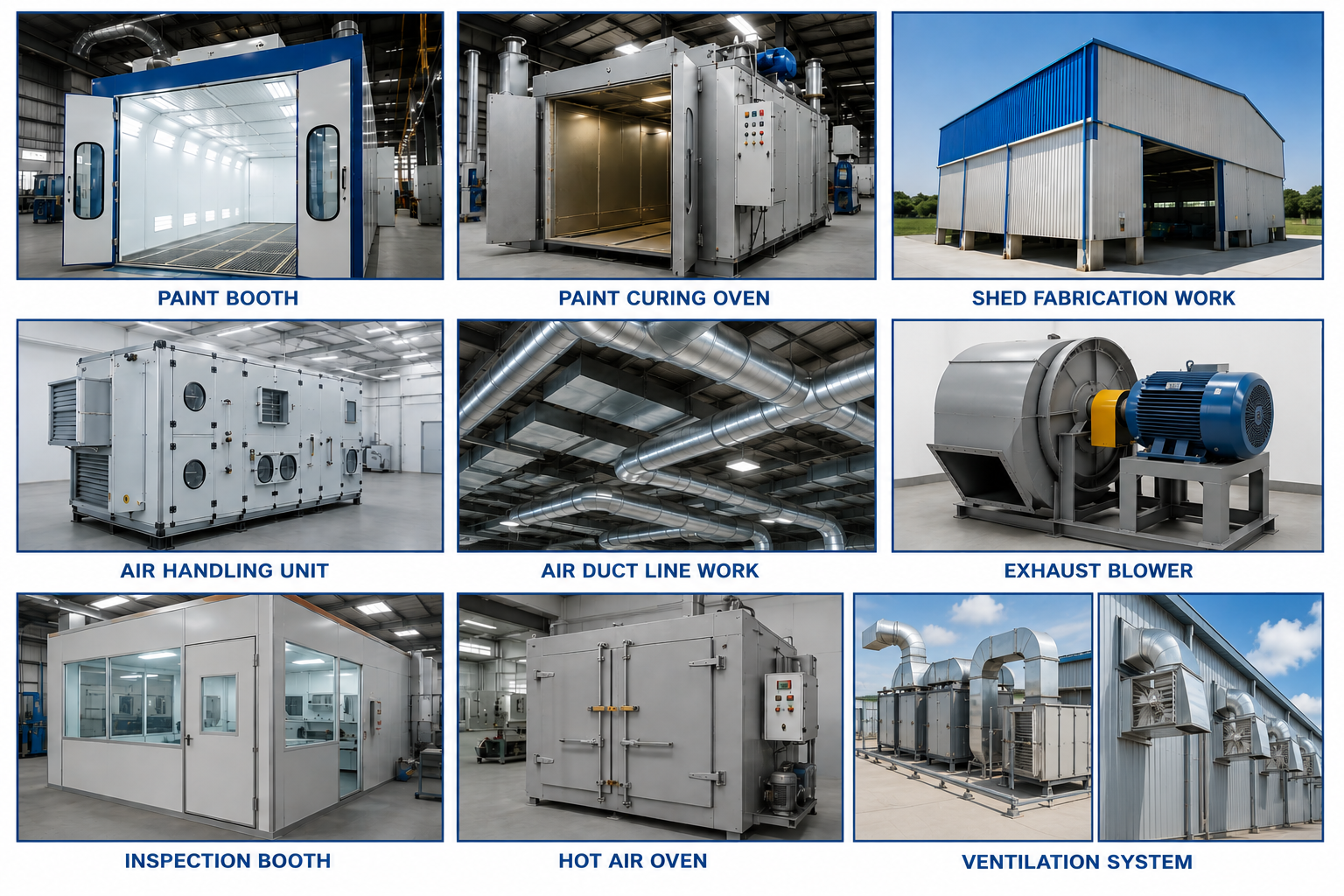

We specialize in customized industrial fabrication, HVAC systems, ventilation solutions, and factory utility installations designed for commercial and industrial applications.
